AUTOMATIC Gradient DILUTION SYSTEM
"T I Y A"

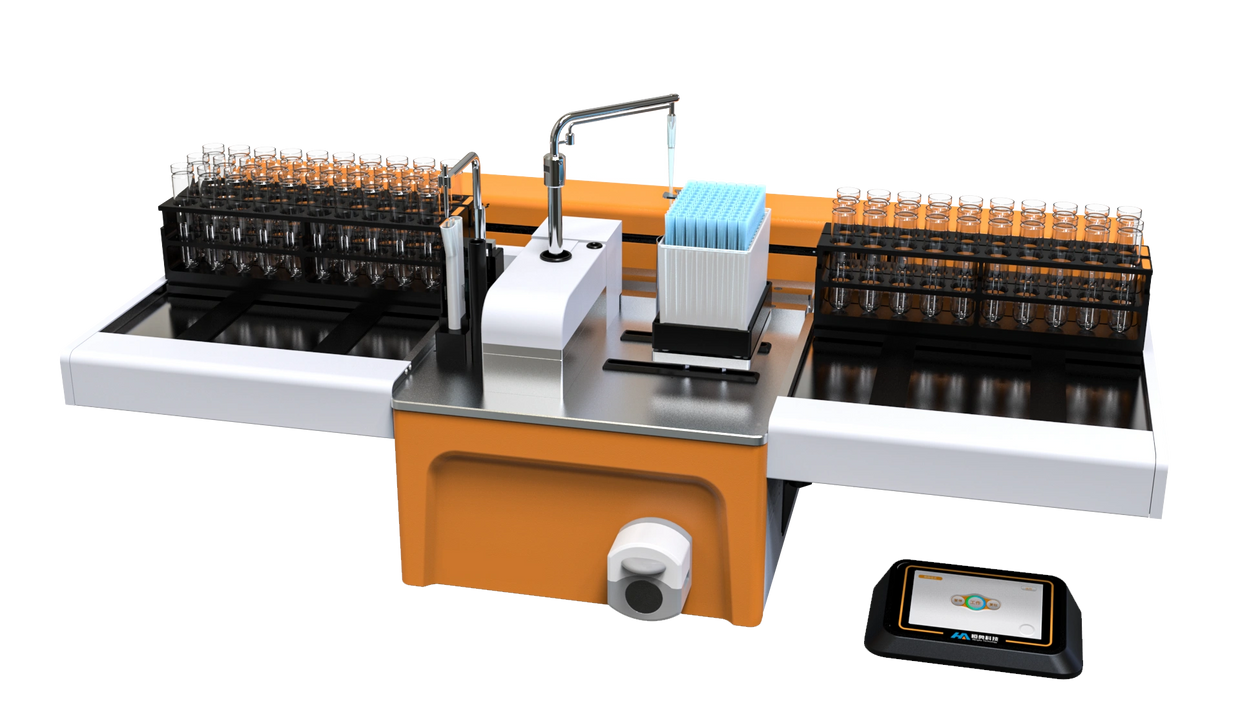

This biological dilution system, named Tiya after the Greek goddess of brilliance Theia, is designed for the continuous gradient dilution or addition of microbiological samples. Tiya provides a high-throughput solution to a complex set of processes and greatly improves efficiency and repeatability. It is widely used in microorganism sample dilution in food safety investigations, probiotic product evaluations, disinfectant effectiveness assessments, environmental studies, etc.
Precision
Intuitive Interface
Intuitive Interface

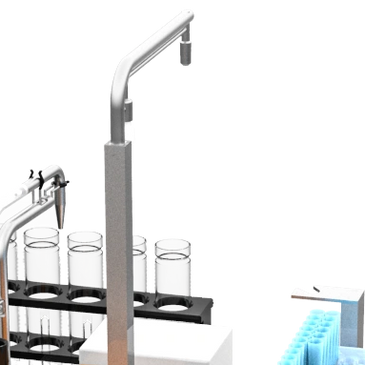

Automatic calibration of injecting liquid volume on startup. High precision injection pump and peristaltic pump ensure extraction and dilution repeatability and accuracy.
Intuitive Interface
Intuitive Interface
Intuitive Interface

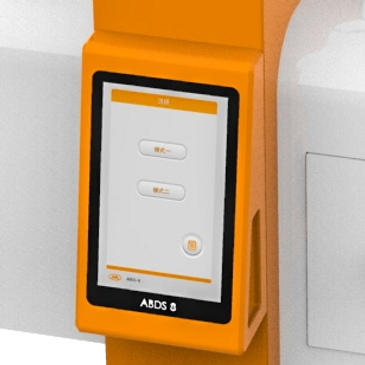

5 dilution settings can be stored in the machine. Full touch screen controls. Sample and operator information can be saved and exported via USB storage, which can easily be traced back.
High Performance
Intuitive Interface
High Performance
One-button startup process. Has a variety of different modes, including dilution, disinfection and spear cleaning modes. The small size means the machine can fit in laminar flow cabinets.
High Efficiency
Intuitive Interface
High Performance
No upper limit on sample volume. The sample is automatically diluted on a gradient. 10 million-fold dilutions would only take 118 seconds. The HDS-06A series is equipped with a conveyor belt that allows it to handle more samples.

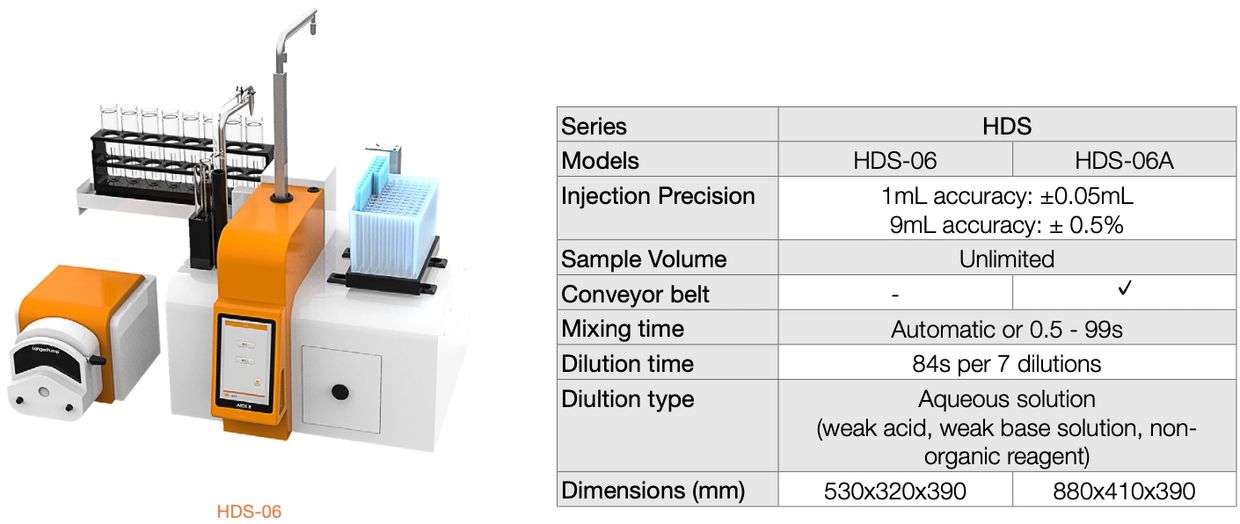

Specification
