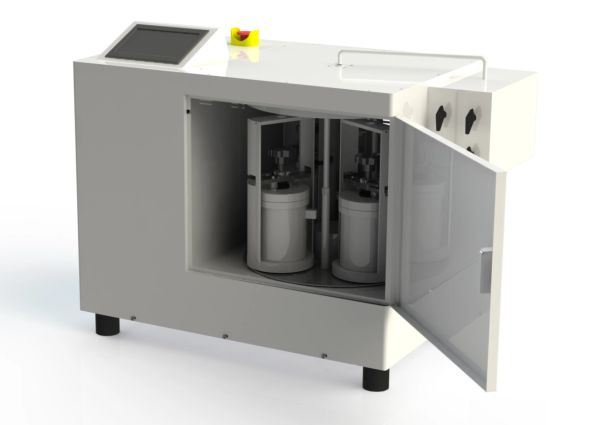

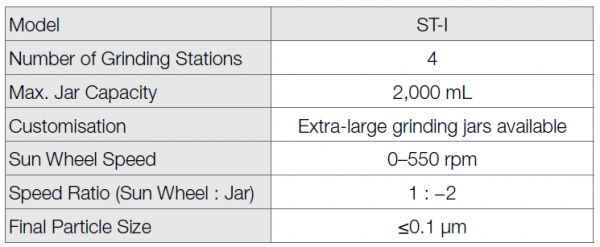

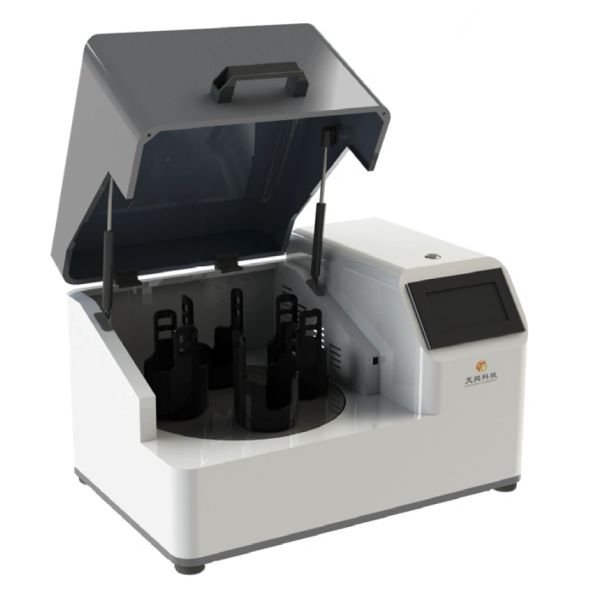

ULTRA-LOW TEMPERATURE PLANETARY BALL MILL

The ST-I is designed for temperature-controlled grinding from elevated temperatures down to −80°C. A circulating liquid medium maintains stable temperatures across the sample, grinding balls and jars throughout milling. Vacuum and inert-gas operation is also supported for oxygen-sensitive materials.

• Sealed coolant circulation for efficient, leak-free cooling system
• Independent temperature control for multiple grinding jars
• Programmable milling and temperature-control cycles
• Final particle size down to <0.1 μm

• Toothed-belt drive with a fixed 1:2 transmission ratio
• Stable high-speed operation with excellent repeatability and consistency

• Independent flow control for each grinding jar
• Integrated air-purge system rapidly clears residual coolant from circulation lines

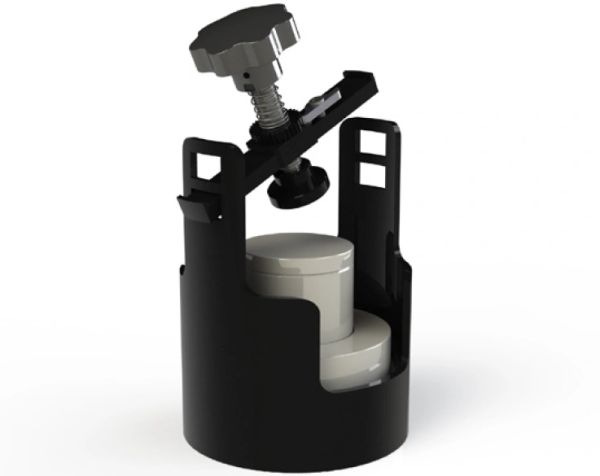

• Simplifies jar removal and sample collection

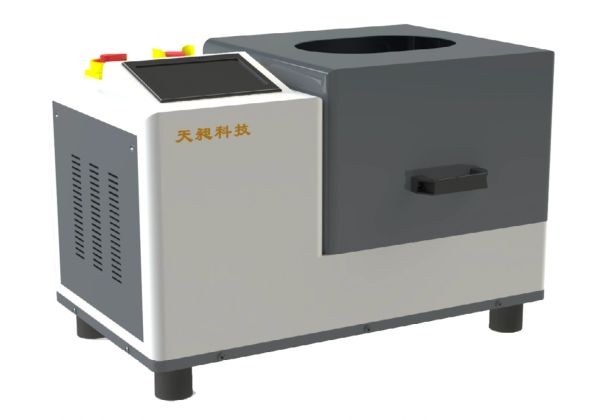

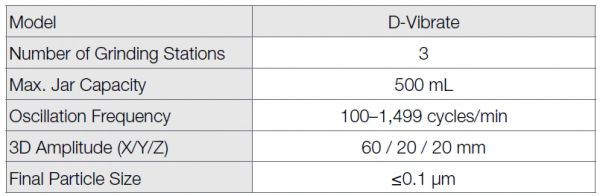

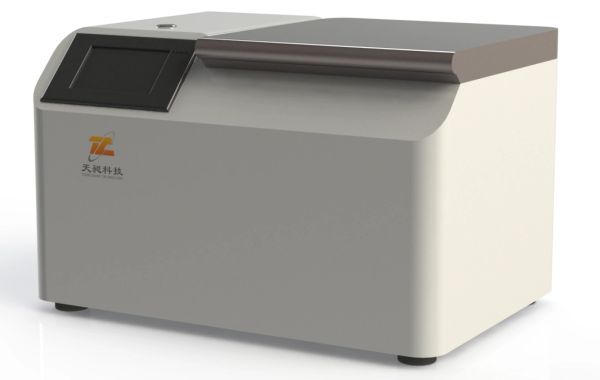

The D-Vibrate Miller combines three-dimensional oscillation, vibration and impact for highenergy grinding. Multi-directional movement generates intensive collision and friction between the grinding balls and sample, enabling rapid and efficient size reduction.

Final particle sizes down to 0.1 μm can be achieved, with nano-scale grinding possible for suitable materials. Designed for rapid grinding, mixing and contamination-sensitive sample preparation with stable, low-noise operation.

• Eccentric drive generates simultaneous vertical, horizontal and lateral movement for thorough, dead-zone-free grinding
• Rapid grinding to micro- and nano-scale particle sizes
• Dual-layer, multi-stage vibration damping ensures stable operation with excellent repeatability and reproducibility

• Up to −80°C

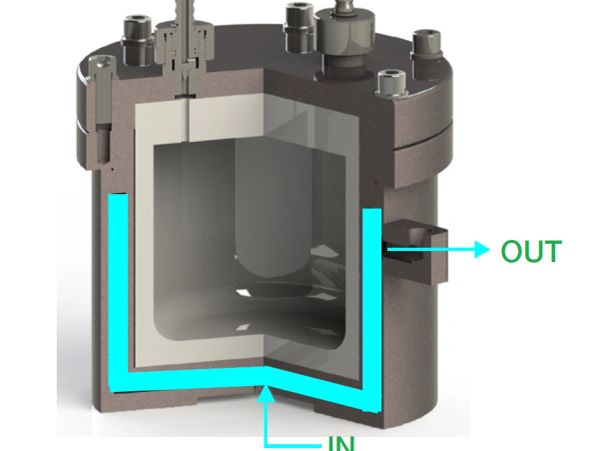

• Low/ultra-low temperature coolant circulates through the grinding jars

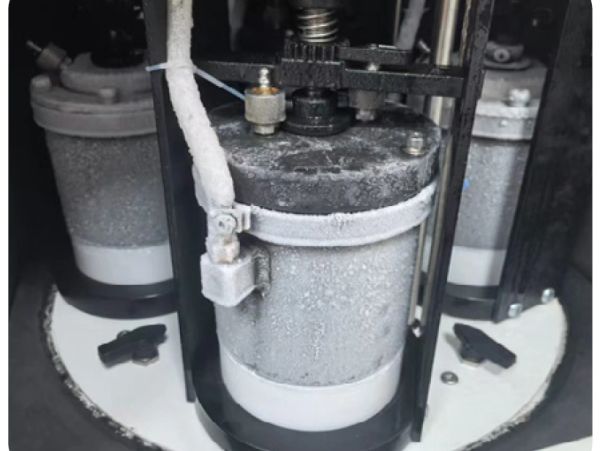

• Direct jar cooling efficiently controls sample temperature during grinding
• Medium-frequency asynchronous motor for high-speed, continuous operation
• Low-noise guide mechanism and enclosed universal-shaft balancing system
• Designed for reliable continuous operation up to 72 hours

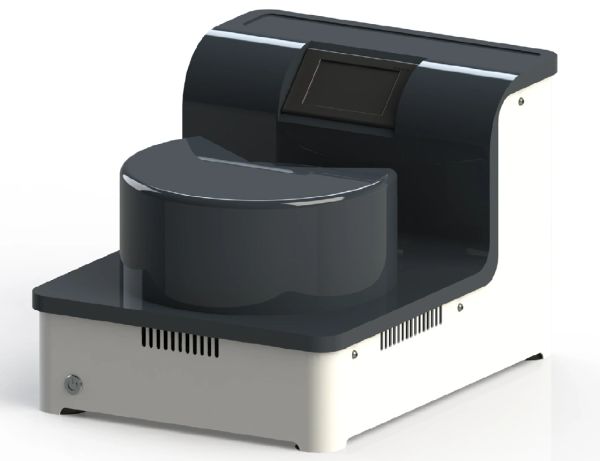

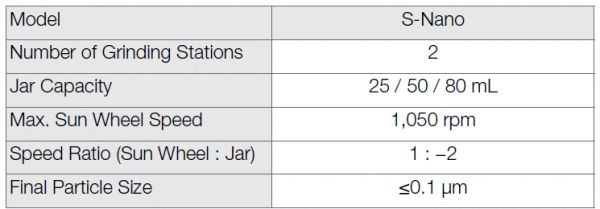

The S-Nano Miller features a compact recessed planetary drive, significantly reducing the instrument footprint while enabling sun wheel speeds up to 1,050 rpm.

Its high-speed planetary motion generates centrifugal acceleration of over 92 × g, delivering intensive impact and friction for rapid grinding down to the nano scale.

• Sun wheel speed up to 1,050 rpm
• Centrifugal acceleration of over 92 × g for high-energy grinding
• Final particle size down to ≤0.1 μm
• Suitable for hard, brittle materials and nano-scale sample preparation

• Supports dry and wet grinding
• Grinding under vacuum or inert-gas atmosphere
• Grinding jars available in agate, silicon nitride, alumina, zirconia, stainless steel, PTFE and tungsten carbide
• Lightweight aluminium alloy outer housing
• Dual manual and automatic locking system for safe operation

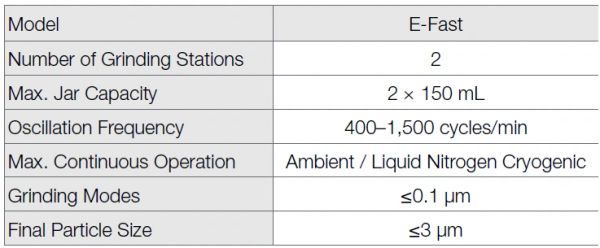

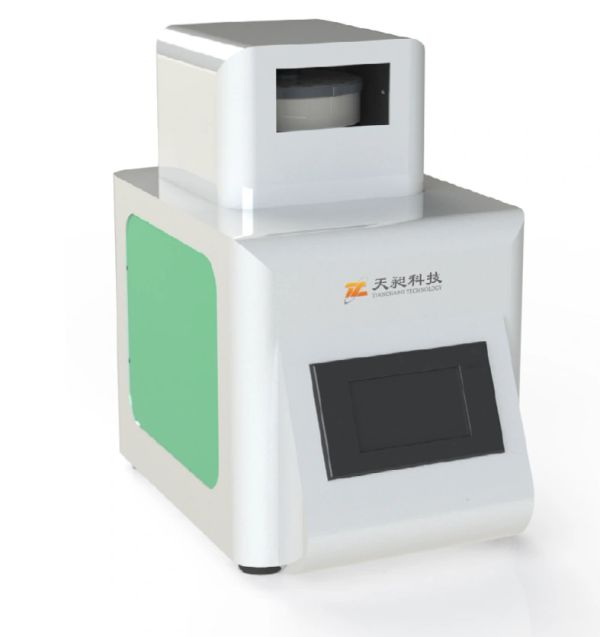

The E-Fast Miller is a high-throughput laboratory mill for rapid grinding, mixing and homogenisation of small to medium sample volumes, including cell disruption and DNA/RNA extraction. Liquid nitrogen pre cooling enables efficient grinding of heat-sensitive and elastic materials. A 30° angled 5-inch touchscreen provides intuitive control with storage for up to 20 programmes.

• High-speed figure-eight oscillation for rapid, dead-zone-free grinding
• Dual-platform design for high-throughput processing
• Wide range of interchangeable grinding jars and adapters
• Optional 150 mL jars for larger samples

• Supports liquid nitrogen pre-cooling for heatsensitive and elastic materials
• Integrated condensate collection prevents moisture from entering the instrument
• Suitable for biological samples and temperature-sensitive materials

• 0.5 mL Tubes: 2 × 192 / 2 × 96
• 1.5 mL Tubes: 2 × 48
• 5 mL Tubes: 2 × 30
• 10 mL Tubes: 2 × 10
• 50 mL Tubes: 2 x 6
• Grinding Jars: 2 × 150 mL

• Adjustable from −40°C to ambient temperature
• Temperature control accuracy of ±0.5°C
• Minimises heat build-up, sample degradation and agglomeration during grinding
• Ideal for temperature-sensitive biological samples and DNA/RNA extraction

• 3D oscillation provides thorough, dead-zone-free grinding
• Up to 1,500 rpm in 3D oscillation mode
• Up to 3,000 rpm in vertical oscillation mode
• Multiple sample formats can be processed simultaneously with no cross-contamination
• Wide range of interchangeable grinding jars and adapters

• Reinforced dual-bearing design for stable, low-noise operation
• Transparent grinding chamber with integrated lighting
• Clear observation of samples and grinding platforms during operation
• Emergency stop when the lid is opened
• Screw-cap grinding jars ensure secure sample containment

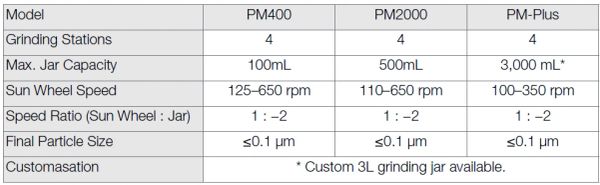

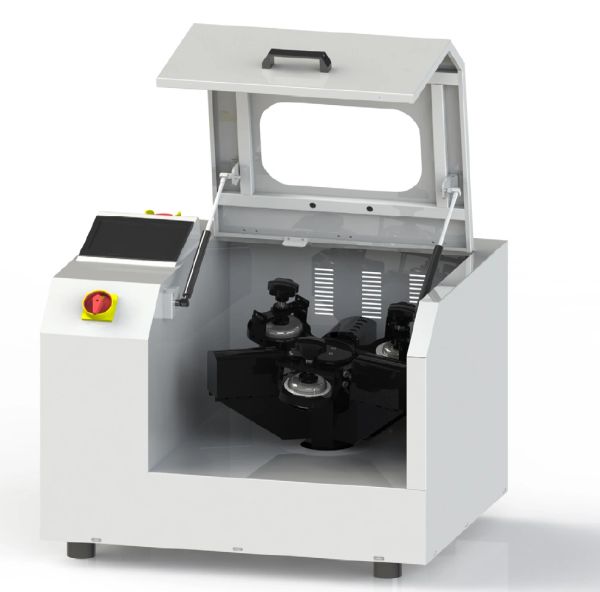

The TC-PM Series Planetary Ball Mill is designed for dry, wet and vacuum grinding, providing efficient fine grinding, mixing, homogenisation and dispersion. Suitable for laboratory sample preparation, nanomaterial processing, R&D and small-batch production.

Depending on the sample and grinding conditions, final particle sizes down to 0.1 μm.

• Operating noise <75 dB at maximum speed
• Reinforced bearing system with timing-belt drive for low wear and stable high-speed operation
• Consistent and reproducible grinding to micro-and nano-scale particle sizes

• Quick-lock grinding jar system for safe and secure operation
